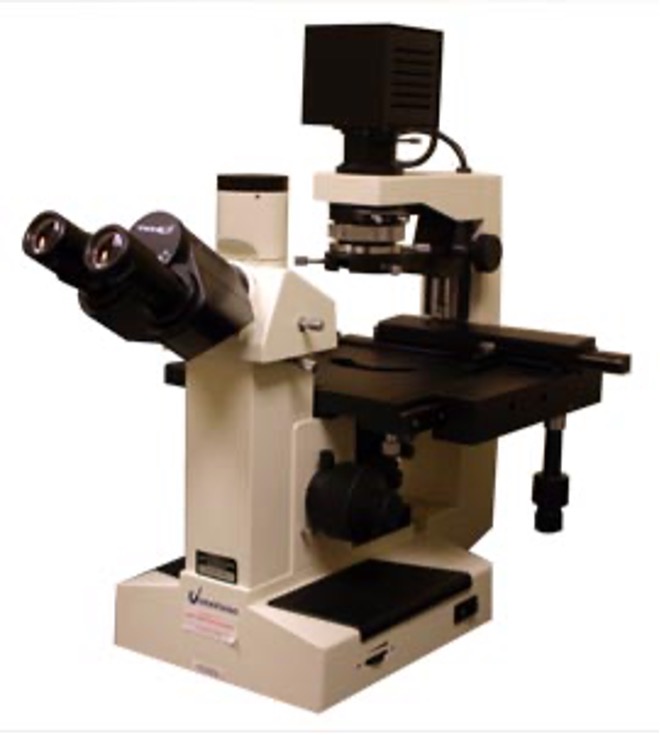

BTX ECM 399 Electroporation System VistaVision Inverted Microscope

This microscope is outfitted with phase contrast and brightfield capability and includes a unique swing-out condenser and long working distance that can accommodate a variety of vessels. The microscope contains a trinocular head for image documentation via camera attachments. In addition, the microscope includes six long working distance objectives: three brightfield planachromatic (10x, 25x, and 40x magnification) and three phase contrast planachromatic (10x, 25x, and 40x magnification). Microscope also features a quintuple-position turret for precise, single knob focusing and an inviting field of view. Illumination is provided by 6V, 20W variable intensity quartz halogen light with iris diaphragm and focusable collector lens.
